Fastener terminology often creates immense confusion across the manufacturing sector. Many professionals casually use generic names without realizing the severe engineering consequences. Misidentifying a hexagonal bolt in procurement or engineering drawings does not just delay orders. It directly leads to mismatched tolerances, compromised joint integrity, and significant assembly line bottlenecks. The term "hexagonal bolt" serves as a broad umbrella. It masks critical engineering distinctions between standard bolts, cap screws, and integrated variants. Choosing the right fastener requires moving past basic nomenclature. We must carefully analyze load distribution and adhere to precise manufacturing standards like ASME or DIN. In this guide, you will learn how to differentiate these categories accurately. We will specifically evaluate upgrades like the Flange Hexagonal Bolt. This knowledge ensures you specify the exact hardware your project demands.
The generic term "hexagonal bolt" typically refers to either a Machine Bolt (looser tolerances) or a Hex Cap Screw (tighter tolerances, chamfered edge).
A Flange Hexagonal Bolt eliminates the need for a separate washer, reducing procurement complexity and assembly time.
Selecting the correct fastener requires mapping specific application stresses (vibration, shear, tension) to exact manufacturing standards (e.g., DIN 6921 vs. ASME B18.2.1).
Standardizing on integrated flange designs can lower total installation costs despite a higher per-unit piece price.
Industry professionals frequently use "hex bolt" and "hex cap screw" interchangeably. This linguistic habit causes significant trouble. Engineers design joints expecting specific bearing surfaces. Suppliers might ship a looser-tolerance alternative based on a generic purchase order. Buyers then face a massive procurement risk. Using a standard bolt where a high-precision cap screw is required can ruin expensive equipment. We must draw a strict line between these two distinct categories.

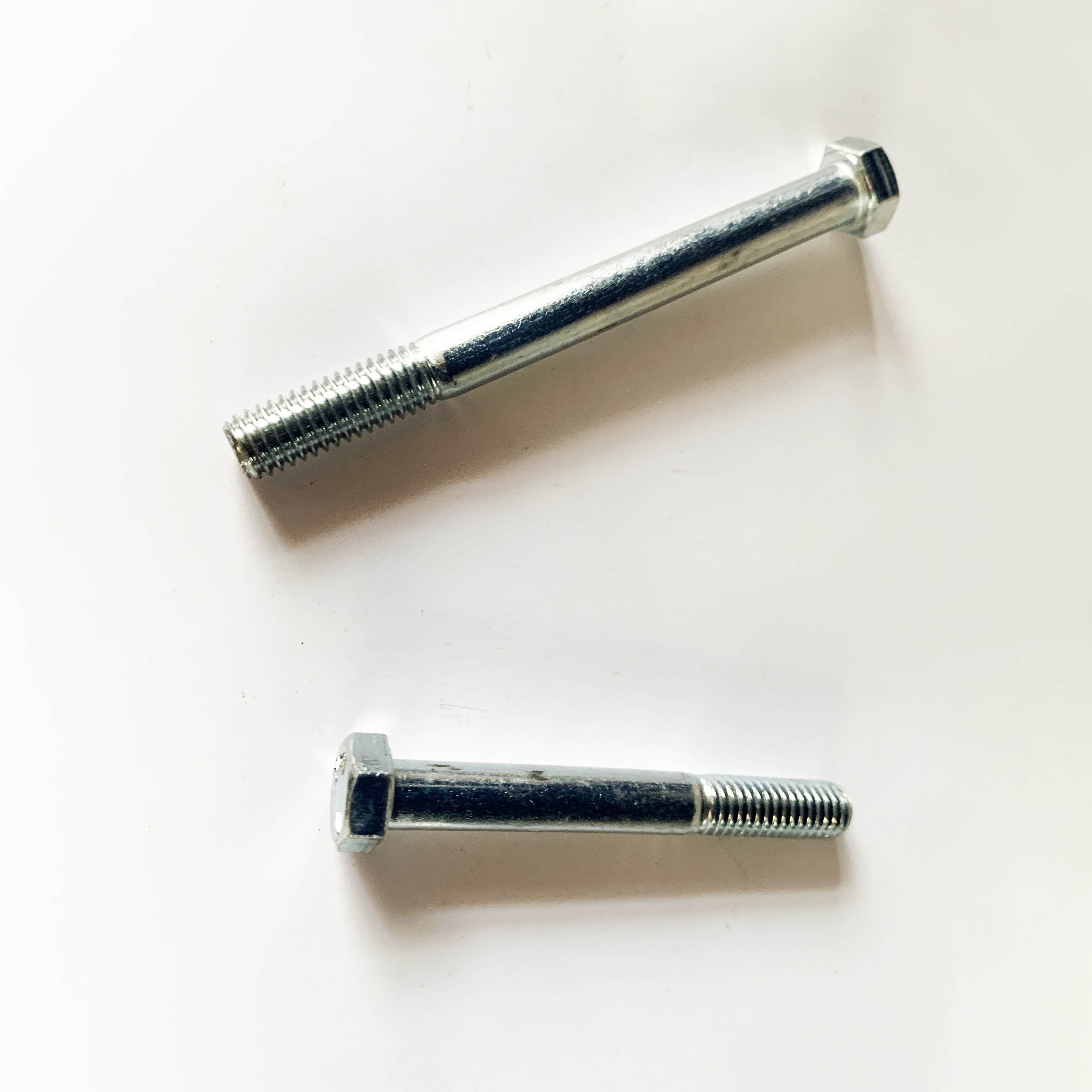

Standard hex bolts, often called machine bolts, represent the baseline of fastening. Manufacturers produce them to looser tolerances. They prioritize raw holding power over microscopic precision. You will notice they typically feature a completely flat head. They lack a chamfered top edge. More importantly, they lack a machined washer face under the head.
Because of this basic design, they suit specific scenarios. We use them for low-precision structural applications. They work perfectly in timber construction or basic steel framing. In these environments, exact alignment simply is not critical. They deliver strong clamping force without the added cost of precision machining.
Hex cap screws sit at a higher engineering tier. Factories manufacture them to highly precise ASME or ISO specifications. Their physical characteristics reflect this precision. They feature a distinctly chamfered top edge. Underneath the head, they feature a precision-machined washer face. This crucial addition provides a perfectly flat, smooth bearing surface.
This superior bearing surface reduces friction during tightening. It ensures a highly accurate torque-to-tension relationship. We rely on hex cap screws for demanding environments. They remain the standard for OEM manufacturing, heavy machinery, and high-stress joints. When you need predictable clamping force, you choose a cap screw.
Design Feature | Standard Machine Bolt | Hex Cap Screw |
|---|---|---|
Manufacturing Tolerance | Loose / Forgiving | Highly Precise (ASME/ISO) |
Head Top Profile | Flat | Chamfered (Beveled edge) |
Under-Head Surface | Rough / Unmachined | Machined Washer Face |
Primary Application | Basic structural, timber, civil framing | OEM parts, engines, automated machinery |
As manufacturing speed increases, engineers seek better hardware solutions. High-volume and high-vibration applications expose the limits of traditional fastener combinations. Enter the Flange Hexagonal Bolt. This component represents the next evolutionary step in mechanical fastening. It combines a highly precise threaded shank with a built-in, flared head.
The success of this design lies in its physical geometry. We can map its features directly to tangible production outcomes.
Integrated Flange: The built-in flange acts as an unremovable washer. It drastically increases the bearing area. This wide area distributes the clamping load over a much larger surface. As a result, it prevents the bolt head from crushing or damaging softer mating materials like cast aluminum or copper.
Serrated vs. Non-Serrated: Manufacturers offer the flange in two styles. Serrated flanges bite into the mating metal. This creates immense resistance against vibration. Non-serrated variants provide the load distribution without scoring the surface beneath.
Washer Elimination: Traditional setups require a separate flat washer. Integrated flanges remove this loose component from your Bill of Materials (BOM). This accelerates assembly speed on the factory floor. It also entirely mitigates the risk of dropped, lost, or forgotten washers during difficult blind hole installations.
Skeptics often point to unit pricing. It is true. A Flange Hexagonal Bolt costs slightly more per unit than a standard hex bolt. However, experienced procurement teams look past the raw piece price. The true return on investment becomes clear on the assembly line. You achieve strict labor savings because workers handle fewer parts. You reduce inventory SKUs by combining two parts into one. Most importantly, you suffer lower failure rates in vibrational environments. The initial hardware investment pays off rapidly.
Choosing a reliable fastener demands strict attention to engineering parameters. You cannot simply guess the right size or material. You must evaluate dimensional standards, material strengths, and surface treatments. Let us break down these critical evaluation dimensions.
The world divides largely into Metric and Imperial thread systems. Navigating these standards prevents catastrophic assembly failures. For metric components, we rely on DIN and ISO standards, such as ISO 4014 or ISO 4017. For imperial hardware, we consult ASME and ANSI guidelines.
Mixing these up creates severe hazards. A slight thread pitch mismatch might look fine initially. However, forcing mismatched threads together is the number one cause of catastrophic galling during installation. The threads will seize, fuse together, and eventually shear off entirely. You must ensure your drawings explicitly call out the exact thread standard.
Fastener strength dictates the safety of your entire joint. We categorize strength using specific grading systems. Metric property classes use numbers like 8.8, 10.9, and 12.9. These numbers map directly to specific tensile and yield strength requirements. Imperial systems use grades, most commonly Grade 5 and Grade 8.
System | Medium Strength | High Strength | Ultra-High Strength |
|---|---|---|---|
Metric Class | Class 8.8 | Class 10.9 | Class 12.9 |
Imperial Grade | Grade 5 | Grade 8 | Alloy Steel (Specific) |
Engineers face a common decision matrix here. Many wrongly assume a higher grade is universally better. This is a dangerous misconception. Higher-strength fasteners are significantly harder. This hardness makes them brittle. Over-specifying a highly brittle fastener in a high shear-stress environment can lead to sudden snapping. A slightly softer, more ductile bolt might bend safely instead of fracturing catastrophically.
A bare steel bolt will rust rapidly. We must specify surface treatments based on environmental exposure. Common choices include zinc-plated, hot-dip galvanized (HDG), or advanced PTFE coatings. You should frame this decision around regulatory compliance rather than aesthetic choices.
For instance, modern electronics and automotive applications require strict adherence to RoHS and REACH directives. This means avoiding toxic hexavalent chromium coatings. Instead, you specify compliant trivalent zinc platings. Hot-dip galvanizing adds a thick zinc layer ideal for marine environments, but it significantly alters the thread thickness. You must account for this coating thickness in your thread tolerances.
Even the best hardware fails if installed incorrectly. Assembly line realities often contradict theoretical engineering models. We must address torque variables, friction hazards, and reuse limitations to maintain structural integrity.
Torque is a measure of turning force. Tension is the actual clamping force holding the joint together. Engineers rely on torque charts to achieve the correct tension. However, a major risk arises when utilizing standard torque charts for modified hardware.
Standard charts assume a flat, smooth under-head surface. If you use a serrated Flange Hexagonal Bolt, the friction dynamics change entirely. The serrations dig into the metal. This aggressive biting significantly increases friction. If you apply standard torque to a serrated flange, much of the turning force fights friction instead of stretching the bolt. You will end up with a loose joint. You must calculate a modified K-factor to achieve the correct clamping tension.
Galling represents a massive headache for heavy industry. It occurs most frequently with stainless steel hex bolts, particularly 304 and 316 grades. When you torque stainless steel, the protective oxide layer scrapes off. The raw metals touch under extreme pressure and generate intense friction heat. They undergo a process called cold-welding. The threads literally fuse together.
Once galling starts, you cannot reverse it. The bolt will freeze halfway down the shaft. You will have to cut it off. We address this reality by mandating anti-seize lubricants. Applying a specialized anti-seize paste prevents cold-welding during the torqueing process. It ensures smooth engagement and future disassembly.
Maintenance teams often toss removed bolts into a bin for reuse. This practice introduces immense risk. High-tensile fasteners should rarely be reused in critical applications. When you torque a Class 10.9 or Grade 8 bolt to its proper specification, you stretch it. If you yield the bolt past its proof load, it permanently deforms.
Reusing a stretched bolt guarantees failure. Furthermore, locking serrations wear down after their first installation. They lose their bite. As an engineering reality, always specify fresh hardware for critical structural and pressurized joints.
Best Practice: Always conduct a sample torque-to-yield test when switching to a new coating type, as different coatings alter friction coefficients.
Best Practice: Mandate nickel-based anti-seize on all 316 stainless steel installations.
Common Mistake: Reusing a serrated Flange Hexagonal Bolt after it has been fully torqued and removed.
Common Mistake: Relying on standard dry-torque charts when using oil-lubricated fasteners.
Every unique part number in your factory costs money to track, store, and manage. Smart engineering teams actively look to standardize their hardware. Transitioning to integrated designs provides an excellent opportunity for consolidation.
You need to audit your current fastener usage. Walk the assembly line and review the mechanical drawings. Look for areas where workers repeatedly use a "Hex Cap Screw + Flat Washer + Lock Washer" combination. In many of these instances, you can transition to a single Flange Hexagonal Bolt. This transition usually makes absolute financial sense. It dramatically reduces your part count and speeds up assembly times across the board.
Standardizing a critical part means you must trust your supplier deeply. Do not base your decision solely on pricing. Evaluate your vendors using strict, uncompromising criteria:
Require Material Traceability (MTRs): Your vendor must provide Material Test Reports. These documents prove the exact chemical composition and physical testing results of the steel batch. Never accept undocumented steel.
Verify Dimensional Standards: Reject vendors who use vague language like "equivalent to ISO 4014." Demand strict, documented adherence to specific dimensional standards.
Assess Coating Consistency: Inconsistent coating thicknesses ruin thread engagement. Verify the vendor has the technological capability to supply precise, uniform plating across millions of units.
Do not implement a massive BOM change overnight. Recommend running a pilot assembly time-study. Select one sub-assembly line. Introduce the new integrated hardware. Measure the improvement in assembly speed. Simultaneously, stress-test the new joint in a laboratory environment. Once you validate both the mechanical integrity and the efficiency gains, you can confidently roll out the change across your entire production floor.
We must recognize that the term "hexagonal bolt" acts merely as a starting point. It is absolutely not a complete technical specification. The fastener industry contains vast differences in tolerances, bearing surfaces, and material yield strengths. Moving from a generic term to a highly specific callout—such as a Grade 10.9 zinc-plated Flange Hexagonal Bolt—is the only way to secure your supply chain and protect your product.
Precision matters. A well-specified fastener prevents catastrophic failures, speeds up factory workflows, and improves product longevity. We encourage buyers and mechanical engineers to stop guessing. Consult with a dedicated fastener application specialist. Review your technical specification sheets thoroughly. Match exact dimensional data, material properties, and friction variables directly to your joint design. Your equipment's reliability depends entirely on getting these details right.
A: The primary differences involve manufacturing tolerance and the bearing surface. Hex cap screws are highly precise. They feature a chamfered top and a machined washer face underneath the head. Standard hex bolts (machine bolts) are less precise, completely flat underneath, and lack a chamfer. We use cap screws for precise machinery.
A: Yes. In most structural cases, it provides equal or superior load distribution. It speeds up assembly by eliminating the loose washer. However, you must carefully check your physical clearance limits. The integrated flange diameter is wider than a standard hex head and might not fit in tight counterbored holes.
A: Serrations are designed to bite aggressively into the mating material. They heavily resist vibration-induced loosening. However, you should not use them on soft materials where deep surface scoring is unacceptable. They are also inappropriate for joints that require frequent maintenance and disassembly.
A: Look directly at the head markings. Radial lines indicate SAE imperial grades. For example, six distinct lines indicate a Grade 8 bolt. Stamped numbers indicate metric property classes. A bolt stamped with "10.9" is a high-strength metric fastener.
