Fastening systems require more than just holding parts together. A mechanical joint must withstand dynamic forces and constant stress daily. The flange acts as a highly engineered solution for critical load distribution. It handles vibration resistance and improves assembly efficiency seamlessly.

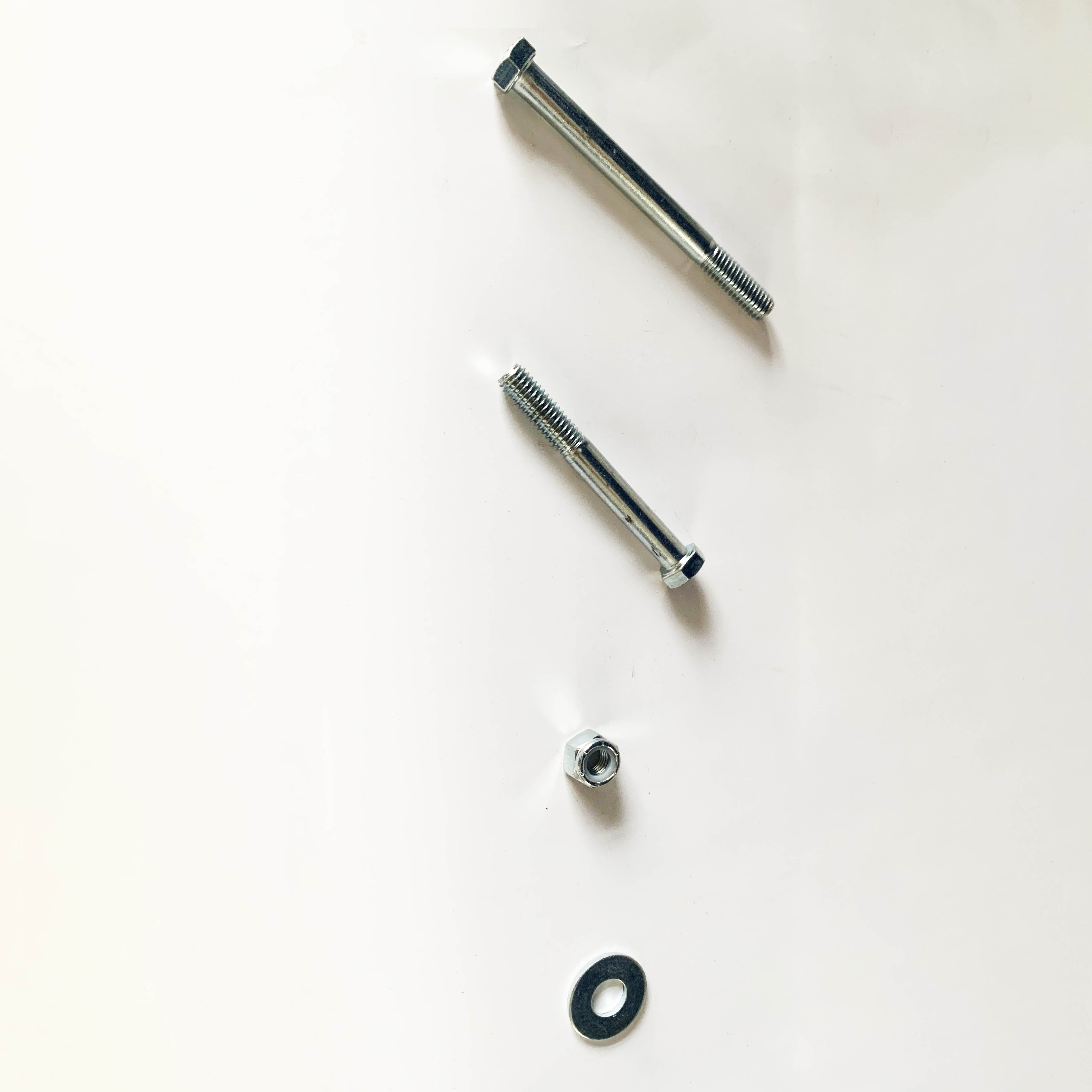

Traditional bolt-and-washer combinations often introduce unwanted bill of materials (BOM) complexity. They carry distinct failure risks during manual and automated installation. Procurement teams and engineers constantly seek ways to streamline production lines. You need robust solutions to maintain joint integrity without adding unnecessary loose parts.
You can solve these modern assembly challenges by specifying a Flange Hexagonal Bolt. This component integrates crucial mechanical advantages directly into the fastener head. We will explore how this design improves load mechanics across various materials. You will learn to simplify standard compliance and secure your final industrial assembly effectively.
Core Function: The flange acts as an integrated washer, expanding the bearing surface to distribute clamping load and prevent damage to mating materials.
Assembly Efficiency: Eliminating separate washers reduces handling time, simplifies inventory, and prevents misassembly on automated production lines.
Design Variations: Selection relies heavily on surface type—serrated flanges for vibration resistance, non-serrated for protecting soft materials or standard torque applications.
Standardization Compliance: Accurate procurement requires aligning dimensional and material specifications with established frameworks (e.g., DIN 6921, ISO 4162).
We define the flange as a widened, circular skirt. It extends outward directly from the base of the bolt head. Manufacturers forge this skirt as one continuous, solid piece. You do not deal with separate sliding components during installation. This solid integration creates a highly stable structural profile. The one-piece design ensures the bearing surface remains perfectly perpendicular to the threaded shaft. It eliminates the slight angular shifts often caused by deformed separate washers.
Understanding load distribution requires basic physics. Pressure equals force divided by the contact area. A standard hex head concentrates high clamping forces into a very small footprint. This intense pressure often damages softer mating materials during final torque. The integrated flange significantly expands the bearing surface area. It spreads the clamping load over a much wider physical zone. You prevent dangerous embedding in soft metals like aluminum or brass. It also stops punch-through failures in sensitive molded plastic housings.
Engineers often face misaligned clearance holes during field assembly. Sometimes, mechanical designs deliberately call for oversized holes. They do this to accommodate loose manufacturing tolerances across large structures. A standard bolt head might slip inside these larger openings. It could compromise the entire structural joint under lateral sheer stress. The wide skirt bridges these problematic gaps safely. It spans oversized clearance holes while maintaining full, rigorous contact. You secure the joint completely without risking pull-through under heavy operational loads.
Smooth flanges feature a completely flat, uninterrupted bottom surface. We recommend them for standard load distribution tasks. They perform exceptionally well on painted or organically coated surfaces. They protect delicate mating materials where surface marring remains unacceptable. You retain the full aesthetic and structural integrity of the clamped part.
However, smooth flanges carry specific limitations in dynamic environments. They offer less inherent resistance to heavy vibratory loosening. They rely entirely on standard thread friction and clamping tension to stay secure. You should avoid them in severe, high-vibration applications unless paired with chemical thread lockers.
Serrated variations feature a series of angled teeth underneath the skirt. We specify them heavily for high-vibration environments. You see them constantly in automotive chassis, industrial pumps, and HVAC mounting systems.
The mechanism relies on controlled material deformation. The teeth bite directly into the mating surface during final torque application. This biting action creates a highly secure, mechanical locking mechanism. It effectively blocks the fastener from rotating counter-clockwise under severe shaking.
You must carefully consider the implementation risks. Serrations will aggressively strip or gall softer materials like aluminum. They destroy protective zinc or powder coatings instantly upon tightening. This destruction exposes bare metal, potentially introducing severe corrosion points over time.
Feature | Non-Serrated (Smooth) Flange | Serrated Flange |
|---|---|---|
Vibration Resistance | Standard (Relies on tension) | Excellent (Mechanical locking) |
Surface Protection | High (No marring or scratching) | Low (Bites into the surface) |
Best Applications | Plastics, painted metals, soft alloys | Heavy machinery, automotive mounts |
Coating Disruption | None | High (Scrapes away protective layers) |
Procurement teams constantly battle inventory sprawl. A traditional fastening setup usually requires three separate items. You must order a bolt, a flat washer, and a lock washer. Each item represents a unique SKU in your database. Reducing two or three SKUs into a single SKU creates massive logistical relief. You simplify purchasing orders, reduce warehouse bin space, and streamline receiving inspections. This consolidation scales beautifully across large manufacturing operations.
Time represents the highest variable expense on any production floor. We must evaluate the time saved by human operators. They no longer have to manually thread washers onto every single bolt. This seemingly small action consumes thousands of hours annually in mass production. Furthermore, integrated designs drastically reduce dropped part delays. Fumbling with loose washers in hard-to-reach industrial installations causes immense frustration. The solid one-piece design allows one-handed, rapid installation in tight structural cavities.
Quality control teams understand the danger of manual assembly errors. Operators occasionally forget to install flat washers during rapid production shifts. Missing washers in standard assemblies often lead to catastrophic joint failure. The concentrated pressure can crush the underlying material. An integrated flange eliminates this human error completely. It mathematically guarantees the critical washer surface is always present. You secure absolute consistency across your entire production run.
Engineering consistency relies heavily on established global frameworks. You must outline the importance of specifying exact dimensional standards. Standardized specs like DIN 6921 or EN 1665 ensure perfect cross-vendor compatibility. They dictate the exact head height, flange diameter, and thread pitch. Sticking to these frameworks guarantees predictable tooling requirements on the floor. Your automated socket drivers will fit perfectly every time.
You must match the fastener's metallurgical strength to your specific load parameters. We evaluate metric classes versus imperial grades based on strict shear and tensile requirements. Metric Class 8.8 provides medium strength for standard industrial framing. Class 10.9 delivers high yield strength for heavy machinery. In the imperial system, Grade 5 serves general purposes well. Grade 8 handles extreme structural loads safely.
Standard System | Common Designation | Approx. Tensile Strength | Typical Use Case |
|---|---|---|---|
Metric | Class 8.8 | 800 MPa | General machinery, moderate loads |
Metric | Class 10.9 | 1040 MPa | Heavy automotive, structural joints |
Imperial | Grade 5 | 120,000 PSI | Standard commercial equipment |
Imperial | Grade 8 | 150,000 PSI | High-stress industrial framing |
Environmental exposure dictates your surface treatment selection. We must assess different materials for long-term survival.
Stainless Steel (304/316): Choose this for severe chemical or water exposure. It excels in marine environments and industrial pump applications.
Zinc-Plated: This serves perfectly for standard indoor commercial use. It offers a sacrificial barrier against mild humidity.
Yellow Zinc / Chromate: Provides thicker protection for moderate outdoor exposure.
Engineers often overlook the severe galling risks present in stainless steel hardware. When you thread a stainless Flange Hexagonal Bolt into a matching stainless nut, friction generates extreme heat. The threads can micro-weld together permanently. You must mandate the use of anti-seize compounds during installation to prevent this expensive failure.
Upgrading your fasteners requires careful mathematical adjustments. The increased friction acting under the wider flange head alters the fundamental torque-tension relationship. It behaves very differently compared to a standard hex bolt. The larger bearing surface demands more rotational force to achieve the exact same clamping tension. Therefore, your engineering team must recalculate specific torque values. Failing to adjust your pneumatic tools will result in dangerously under-tightened joints.
Sourcing reliable components demands a strict evaluation methodology. You should establish firm criteria for evaluating potential suppliers.
Evaluate the Source Type: Decide between broad MRO distribution platforms and direct manufacturers based on volume needs.
Demand Batch Traceability: Ensure the supplier can track specific production lots back to the raw material melt.
Require Material Test Reports (MTRs): Never accept high-strength fasteners without certified documentation proving their exact chemical composition.
Verify Dimensional Tolerances: Audit their quality control processes to ensure the flange diameters remain strictly within DIN/ISO limits.
Maintenance teams need clear guidelines regarding component reusability. Smooth flanges typically allow for multiple reuse cycles without issue. Their flat bottoms do not sustain or cause significant damage during removal. Conversely, serrated flanges demand a stricter policy. They physically bite into the metal to lock themselves. They often lose their sharp "bite" after their initial removal. The flattened teeth may compromise the joint if re-torqued. We generally recommend replacing serrated variants entirely after disassembling a joint.
Choosing the right fastener transforms your overall production efficiency. You should select a Flange Hexagonal Bolt whenever localized pressure reduction, vibration resistance, and sheer assembly speed stand as your primary engineering goals. It consolidates parts effectively and dramatically reduces human error on the floor.
Your next step requires decisive engineering action. Review your current joint design specifications immediately. Identify where loose washers cause bottlenecks or failures. Determine the exact metric class or imperial grade required for your structural loads. Finally, contact a qualified distributor to request technical drawings and physical material samples for your testing lab.
A: Yes, structurally it can handle the same loads. However, you must account for localized clearance issues. The significantly wider flange head requires more radial space. Ensure your recessed holes or surrounding components can accommodate the larger outer diameter of your sockets and wrenches.
A: No. Adding a separate washer entirely defeats the purpose of the integrated design. It introduces another slip plane, compromises the solid bearing surface, and unnecessarily reduces your available thread engagement. Always install them directly against the mating material.
A: We highly discourage re-torquing serrated fasteners. The locking teeth flatten and deform during their first installation and subsequent removal. Reusing them significantly reduces their gripping power. You risk severe vibratory loosening if you try to re-deploy an already worn serrated head.
A: The wider bearing surface creates a larger friction radius. This shift alters the standard K-factor used in torque equations. You will typically need to apply higher torque compared to a standard hex bolt to achieve the exact same clamping force (preload) in the joint.
