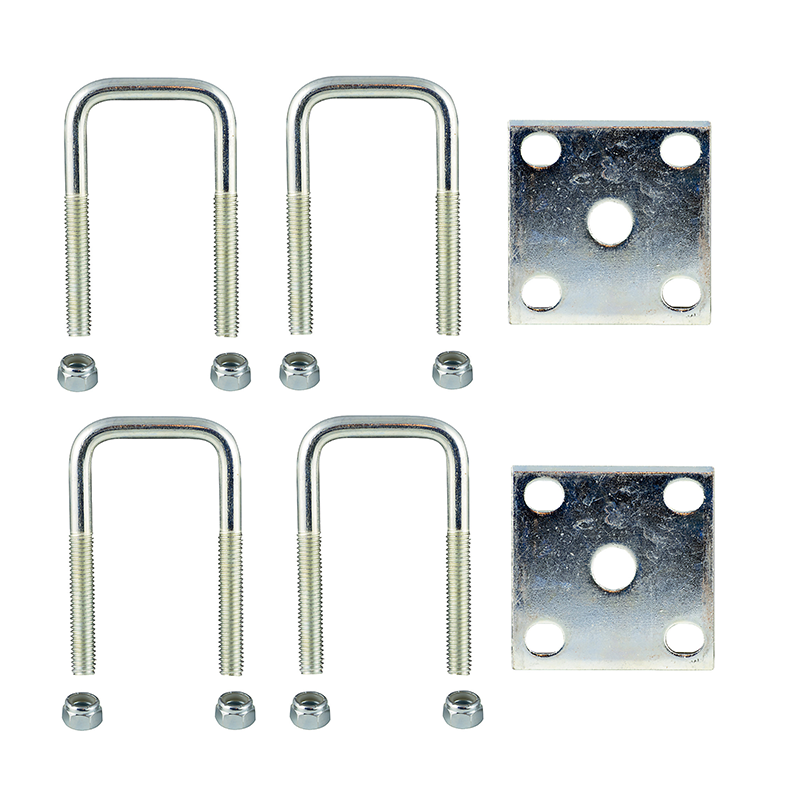

A U‑bolt is a U‑shaped threaded fastener, commonly paired with matching nuts and backing plates. Most U‑bolts are galvanized carbon steel or stainless‑steel, offering solid clamping power to secure pipes, tubes, poles and structural parts across multiple industries. Simple in shape yet highly practical, they serve as a cost‑effective alternative to welding in many assembly jobs. This article introduces typical application scenarios and correct operating guidelines for U‑bolts.
One of the most well‑known applications of U‑bolts is fixing leaf‑spring suspensions for trucks, utility vehicles and trailers. U‑bolts bind leaf springs tightly to axle tubes, maintaining axle position and wheel alignment, which directly affects driving stability and safety.
Usage guidance: Place the curved U‑arch over the outer surface of the axle tube. Let the two threaded shanks pass through the leaf‑spring seat and the reinforcing backing plate. Tighten nuts alternately and evenly on both sides with a torque wrench. Never fully tighten one side first. Excessive torque will crush spring leaves or strip threads; insufficient torque causes axle shifting. Regular re‑torque inspection after heavy‑load operation is essential for trailers and commercial vehicles.
In building plumbing, heating ventilation air‑conditioning, and fire‑fighting piping networks, U‑bolts act as pipe hangers and clamps. They hold round pipes onto beams, walls and support brackets, limiting displacement triggered by vibration, fluid impact, and thermal expansion and contraction.
Usage guidance: Choose a U‑bolt whose inner opening diameter matches the pipe outer diameter. Nest the pipe within the U‑curve. Feed the threaded ends through pre‑drilled holes on support brackets or backing plates, then fit and fasten nuts step‑by‑step. For metal piping, install rubber or plastic cushion gaskets between the U‑bolt and pipe surface. Gaskets buffer vibration noise and avoid scratching pipe anti‑corrosion coatings. Do not over‑compress pipes.
In construction work, galvanized U‑bolts connect circular steel tubes, handrails, traffic sign posts and solar panel support frames. They enable fast mechanical connection without welding, convenient for on‑site assembly and later disassembly and adjustment.
Usage guidance: Hook the U‑shaped bend around the target pipe or pole. Thread both legs through pre‑punched holes of steel mounting plates or section bars. Add washers and nuts, and apply symmetric torque. Backing plates are strongly advised. They distribute concentrated pressure across a wider contact area, preventing U‑bolt threads from denting or piercing thin metal sheets. For outdoor construction, prioritize hot‑dip galvanized products for anti‑rust performance.
U‑bolts are widely popular on farms for building greenhouses, livestock pens, fence frames and agricultural equipment racks. They firmly lock crossed round tubes together, removing the need for complicated welding equipment.
Usage guidance: Position two intersecting tubes inside the U‑bend. Cover the tube assembly with the backing plate across the two threaded ends. Screw on nuts and tighten to lock the two pipes into position. Galvanized U‑bolts cope well with damp farm air, manure vapour and outdoor rain exposure, lengthening the service life of farm frameworks.
Coastal and marine environments feature high humidity and salt spray that accelerate metal corrosion. Here, stainless‑steel U‑bolts are the preferred option for dock hardware, awning frames, shade‑structure supports and outdoor machinery mounting.
Usage guidance: Pick suitable‑grade stainless‑steel U‑bolts for salt‑air scenarios. Follow standard clamping procedures. Keep threads clean during installation. Apply anti‑seize compound on threads to prevent seizure caused by salt corrosion, so that future disassembly remains possible.
Size selection: The U‑bolt inner width must fit the outer dimension of the clamped object. Too large creates loose clamping; too small cannot fit the workpiece.
Backing plate priority: Where possible, use matching backing plates. They spread load and protect thin materials from local crushing stress.
Even tightening: Always tighten nuts on two sides alternately. One‑sided tightening causes skewed loading, thread damage and slipping risk.
Material selection: Galvanized carbon steel suits general outdoor dry‑wet conditions. Stainless steel applies to salt‑water, coastal and high‑corrosion settings.
Regular inspection: For dynamic‑load positions like trailer axles, check nut tightness periodically under working conditions.
From heavy‑duty vehicle suspension to building pipelines, farm frameworks and seaside installations, U‑bolts deliver simple, reliable mechanical clamping. Correct selection of size and material, plus standardized tightening procedures and reasonable use of backing plates, maximize fastening safety and service life. As reusable mechanical fasteners, U‑bolts remain an economical and indispensable choice across numerous industries.
